Carbon Pleated Panel Filters

  • Characteristics of activated carbon: Activated carbon is a porous carbonaceous material, he has a highly developed pore structure is an excellent adsorbent; each gram of activated carbon adsorption area is equivalent to as many as eight tennis courts, and its adsorption is achieved by physical and chemical adsorption.
  • Long-term use: Replacement frequency of 3-5 months, saving maintenance costs. (Replacement time depends on environmental requirements)
  • Application Scenario: Suitable for air-conditioning systems, factories, homes, offices, residential areas, commercial and industrial areas and various brunch chains.

Adsorption of odors︱Carbon Pleated Panel Filters

Hencolin’s Carbon Pleated panel Filters are made of coconut shell-soaked synthetic fiber activated carbon filters, which contain highly porous activated carbon that effectively adsorbs a certain level of odors and fumes, such as combustion and kitchen odors, as well as unpleasant odors from paints, cigarettes, and exhaust fumes. The metal expanded mesh design on the filter is mainly used to support the filter and reduce the pressure difference generated during the use of the filter to extend its service life. It is widely used in commercial buildings, residential areas, schools, hotels, apartments and industrial areas.

Specifications

Frame: Rigid high wet-strength beverage board / Galvanized Iron
Media: Polyester + active carbon
Efficiency: G4 (EN 779) / MERV 8 (ASHRAE 52.2)
Sealant: white glue, hot melt glue
Safety grade: UL900
Max. Temperature: 70°C
Max. Relative Humidity: ≦95% RH

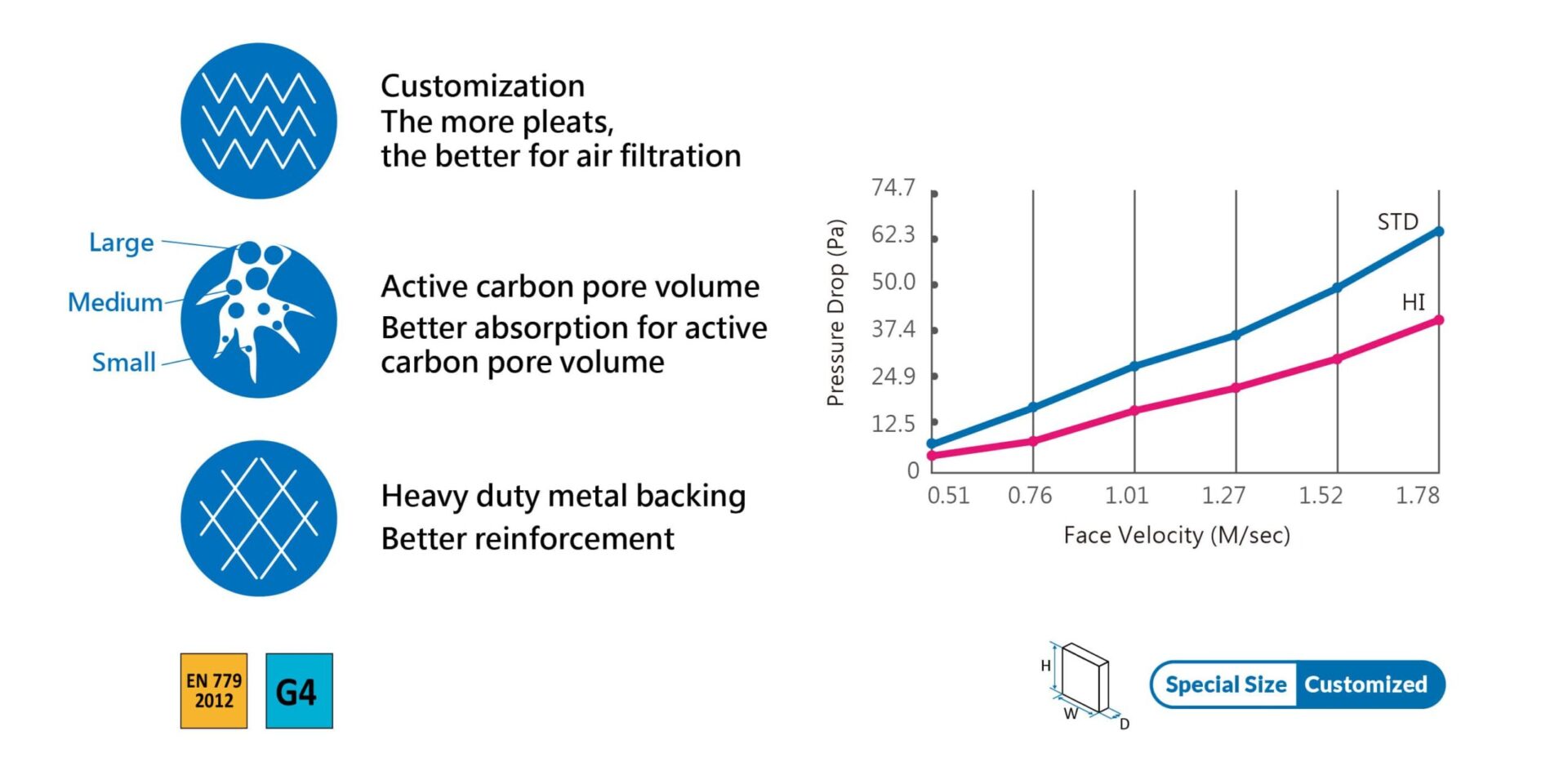

Rec. Final Pressure Drop: ≦200Pa

Advantages

✔ Adsorbs odors, smoke, etc.
✔ Remove unpleasant odors
✔ Removes odors from burners, kitchens, etc.
✔ Tight bonding, high air density
✔ High adsorption efficiency and long service life

Applications

Various types of air-conditioning ventilation systems
Effective treatment of chemical odors and air pollution
Residential, commercial and industrial areas

Benefits
  1. Sensory Odor Absorption Capacity: Activated carbon is a porous structure of carbonaceous material, [activated carbon filter] adsorption can effectively reduce the odor to help anti-odor, deodorization, to ensure that the air you breathe is clean and odor-free.
  2. Long Lifespan: To ensure the reliability and durability of the product, the filter is made of moisture resistant cardboard. Its superior durability and long service life reduces the frequency of filter replacement, saving you time and cost.
  3. Low Resistance and Efficient Ventilation: Compared with traditional filters, the low resistance design of the primary air filter ensures efficient air ventilation and maintains good air flow. This not only improves air purification, but also reduces energy consumption, making your living environment more environmentally friendly.
  4. East to Install and Maintain: This filter is designed to be user-friendly and easy to install. At the same time, its removable and washable features make the maintenance process easier. You can easily keep the filter clean to ensure continuous high filtration efficiency.
  5. Multi-purpose Application: Activated carbon air filters are widely used in a variety of venues, including homes, offices, residential, commercial and industrial areas, and various brunch chain smoke exhaust systems.

Activated carbon is an amorphous carbon in the form of black powder or granules. The term “amorphous carbon” describes the structure of the carbon atoms within the carbon that are not arranged in a fixed order. In fact, its internal structure is not really amorphous, but has the same structure as graphite (graphite) crystal. The biggest difference between activated carbon and graphite lies in the messy and irregular layer structure formed by the hexagonal ring planes of its carbon atoms, defective crystal formation, and tiny grains containing a small amount of impurities. In addition to the main component of carbon, there are oxygen, hydrogen, nitrogen and other elements.
Activated carbon adsorption principle: its unique molecular structure, each gram of activated carbon if the internal pore space can reach 500 ~ 1700 square meters, it is this unique internal structure, making the activated carbon has excellent adsorption capacity, activated carbon applications are very wide, such as: military gas masks, cigarette filters, air purifiers, water filters…
Activated Carbon removes odor compounds such as hydrogen sulfide, mercaptan, methoxybenzene, nicotine, kitchen odors, etc….
