Carbon Loaded Web Type Chemical Filters
Coated activated carbon filters offer a significant leap in air purification. These filters combine high-capacity carbon particles with a special wool structure, dramatically boosting adsorption and efficiency. Available in acid, alkali, and VOC removal variants, they target a wide range of air pollutants, making them ideal for homes and businesses seeking superior air cleaning, especially for specific chemicals and gases.
Carbon Loaded Web Type Chemical Filters
Activated carbon coated filters are effective in removing a wide range of air pollutants and odors from indoor air speeds.
High-efficiency activated carbon gas filters are suitable for use in HVAC demand places, such as: office buildings, hospitals, airports and other indoor demand places.
This filter contains 600 grams of carbon and mainly removes acid gases (HCI, H2S, SO2, NO2, H2SO4, etc.), alkaline gases (Ammonia, Amides), and organic gases (VOCs, etc.). It has high adsorption power for ppb grade gas pollutants.
Specifications
Frame: Aluminum, Galvanized Iron, Stainless Steel, Plastic
Media: High efficient non-woven + activated carbon
Separator: plastic separator
Sealant: Polyurethane (PU)
Gasket: Neoprene rubber
Max. Temperature: ≦ 50°C
Removal Efficiency (%): over 90% at beginning
Basis Weight:1400 g/m²±10%
Carbon Loading: Avg. 800g/m2 ± 10%
Advantages
✔ High contamination removal efficiency
✔ Odors control for demanding IAQ applications
✔ Available in a variety of styles to fit your HVAC retrofit needs
✔ Low pressure drop
✔ High carbon Loading
✔ High air permeability
✔ Media options for improved removal of specific gases with 2-in-1 version.
✔ Lifetime: 6 months when input lower than 10 ppb
✔ Low dust emission meets ISO Class 7
Applications
High Efficiency GAS PHASE filters are well suited for demanding HVAC applications in office buildings, hospitals, airports and other installations where indoor air quality problems can be found. The filters are offered in a variety of standard size which will easily fit into most existing HVAC units and new construction.
Benefits
- Enhanced Pollutant Capture: The encapsulated activated carbon filter design enhances the capture of a wide range of airborne pollutants such as volatile organic compounds (VOCs), odors and bacteria.
- Larger Filtration Surface Area: The unique wrap design provides a larger surface area, thereby increasing the efficiency and speed of contaminant adsorption.
- Longer Service Lifespan: Due to its high pollutant adsorption capacity, the coated activated carbon filter can be used for a longer period of time, reducing the frequency of replacement and saving maintenance costs.
- Preventing Clogging: Its design helps minimize the possibility of filter clogging, maintains airflow, and improves overall filter life and efficiency.
- Environmentally Friendly: Compared with conventional filters, the high efficiency and durability of the coated activated carbon filter reduces the frequency of replacement, minimizes waste generation and is more environmentally friendly.
Coated activated carbon filters are a revolutionary technology in the field of air purification. Its greatest advantage is its high adsorption capacity, which can quickly and effectively capture a wide range of airborne pollutants such as volatile organic compounds (VOCs), odors and bacteria. In addition, its unique wrap-around design increases the contact area with the air, thus improving filtration efficiency. What’s more, the filter is long-lasting, meaning it can last without frequent replacement, which not only reduces maintenance costs, but is also kinder to the environment. In addition, the molded design prevents clogging of the filter media, ensuring efficiency and stability over time. In general, clad activated carbon filters are the leading modern air purification solution for their superior filtration performance, cost-saving and environmental friendliness.
Product Information
Media Type | CB800A | CB800B | CB800C |
Media Thickness | 2.5 mm | 2.5 mm | 2.5 mm |
Carbon Loading | 800 g/㎡ | 800 g/㎡ | 800 g/㎡ |

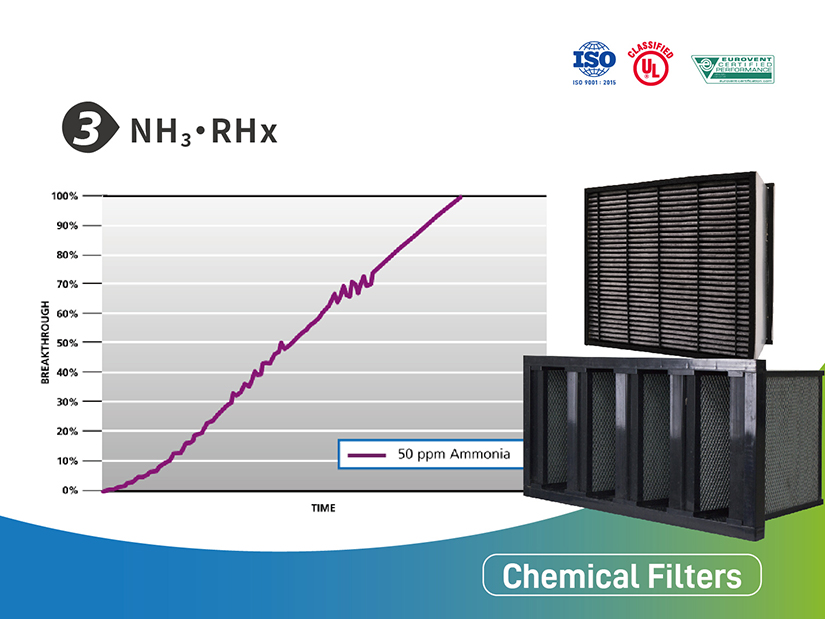

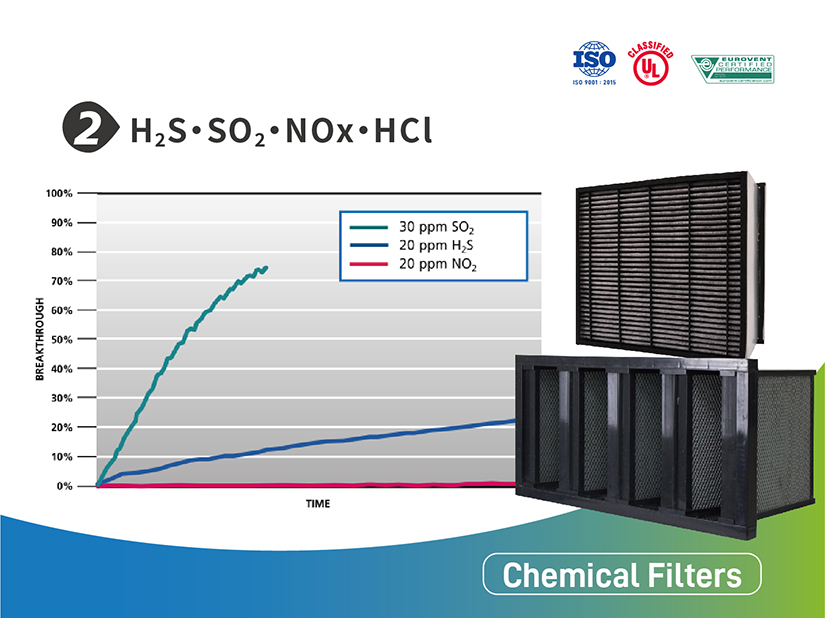

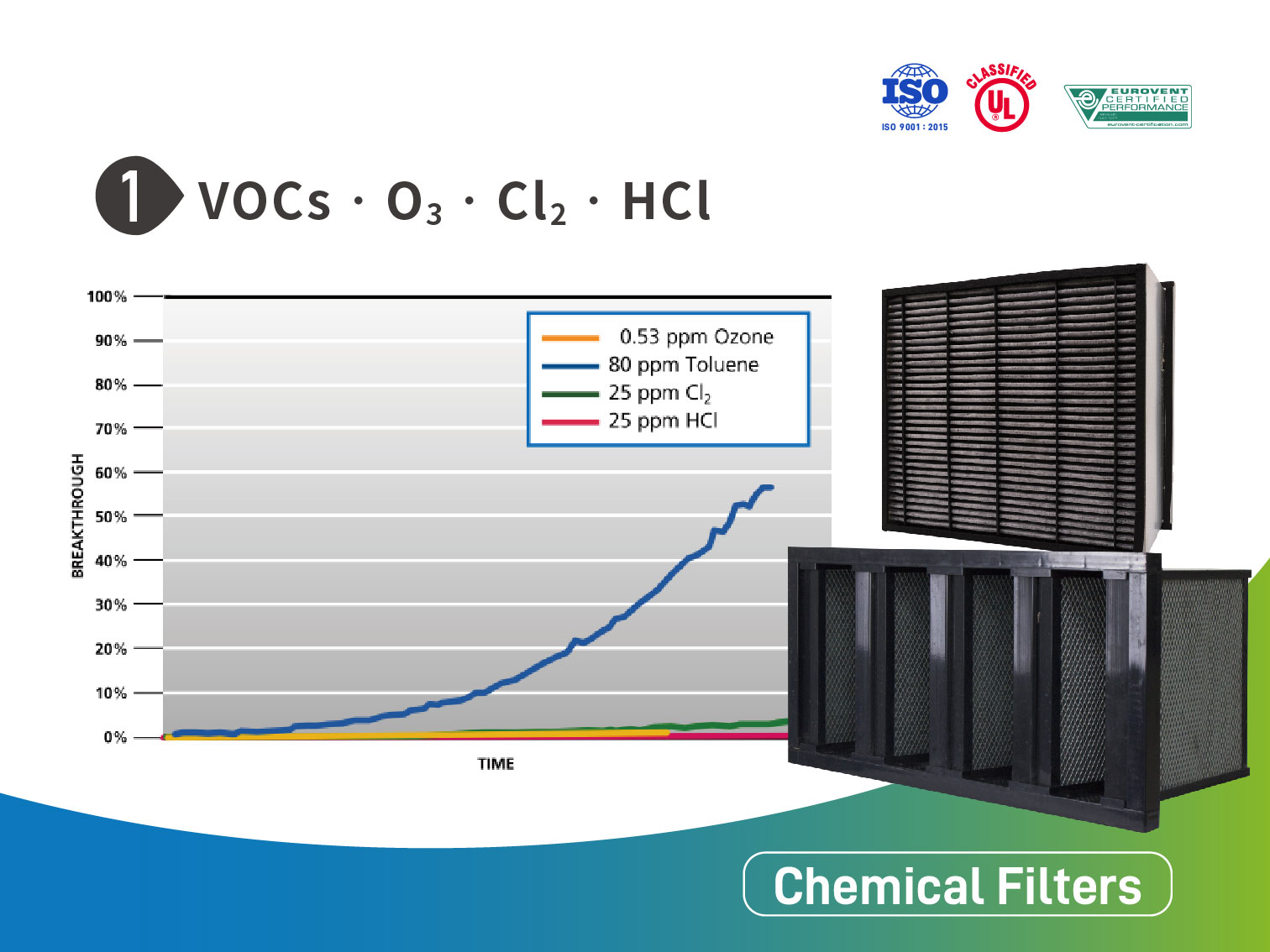

Removal Odors | Acids HCl H2S SO2 NO2 H2SO4 | Bases (Ammonia & Amine) | VOCs Cigarette Odors Hydrocarbons Food/Cooking Odors Exhaust Odors Diesel Fumes Ozone Industrial Odors Outdoor Pollutants |
◎ Maximum operating temperature: 40°C⭣
◎ Cell sides: High Impact Polystyrene
◎ Maximum relative humidity: 70%⭣
◎ Disposal: Incineration
